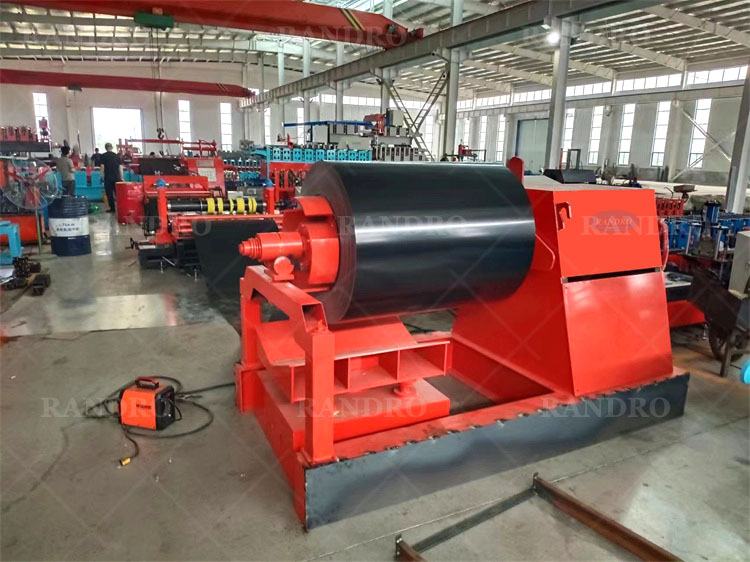

Steel Coil Slitting Production Line

  • Source Factory
  • Support ODM OEM
  • Long Term After-sales Service

Application Scope

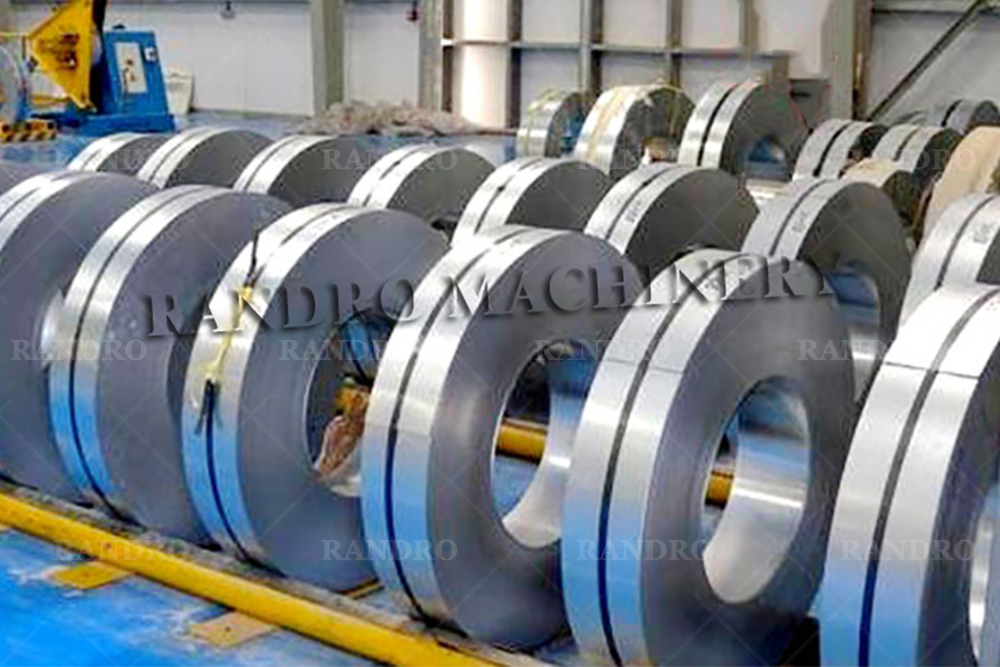

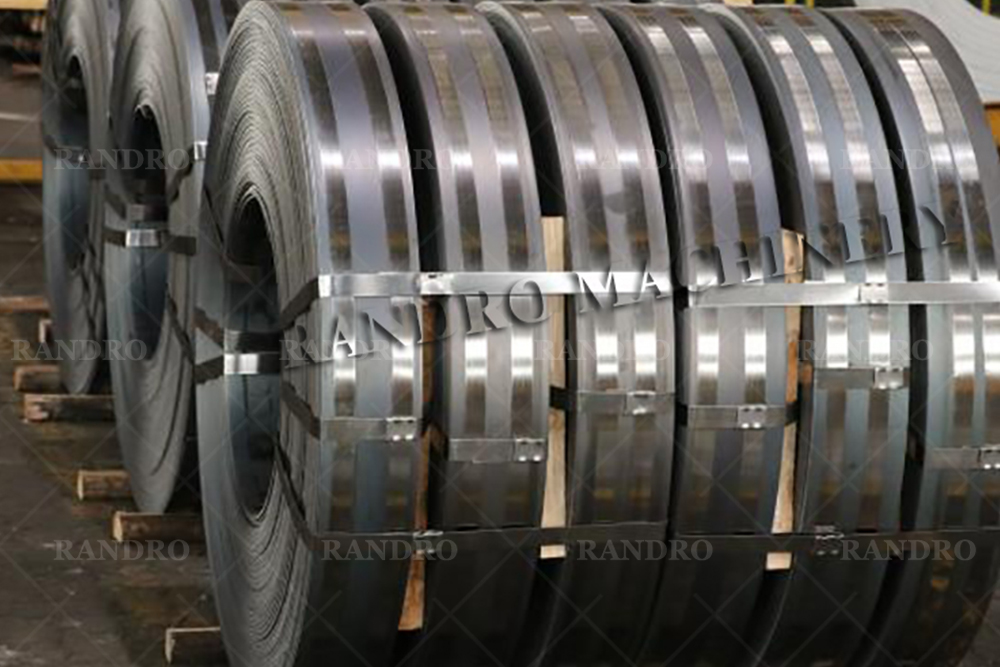

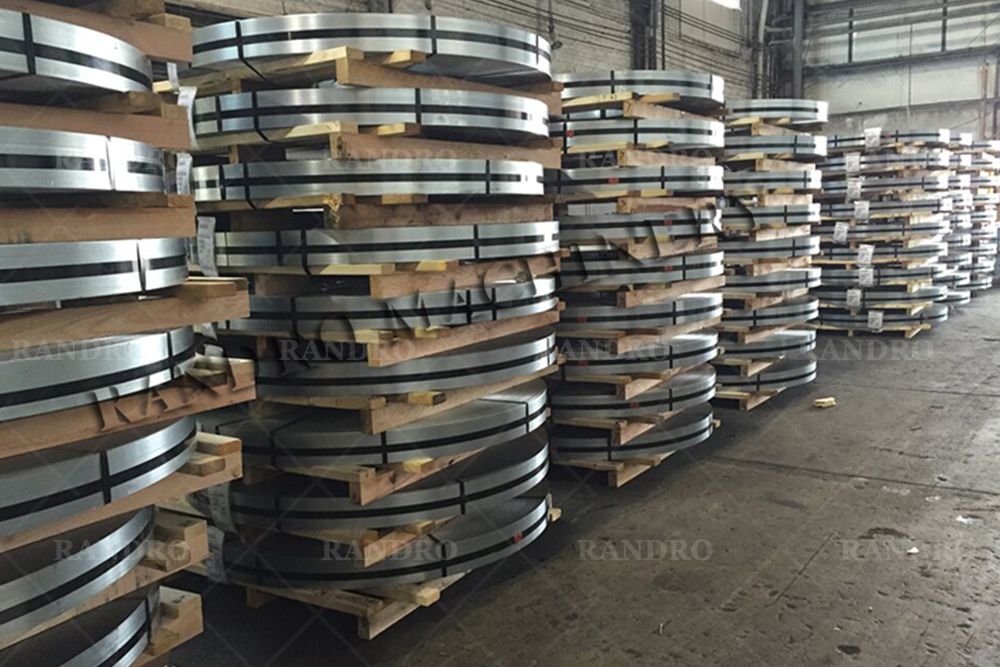

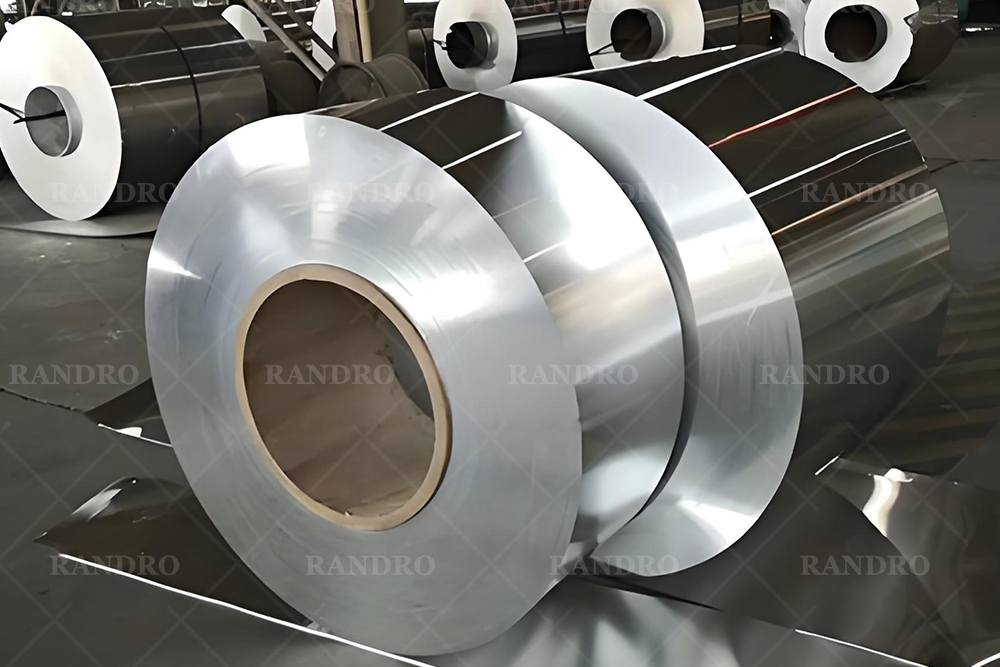

It is suitable for longitudinal shearing of metal strips and rewinding the slit narrow strips into rolls. It is suitable for transformers, motors, home appliances, automobiles, building materials, packaging industries, etc.

Contact Us

Equipment introduction

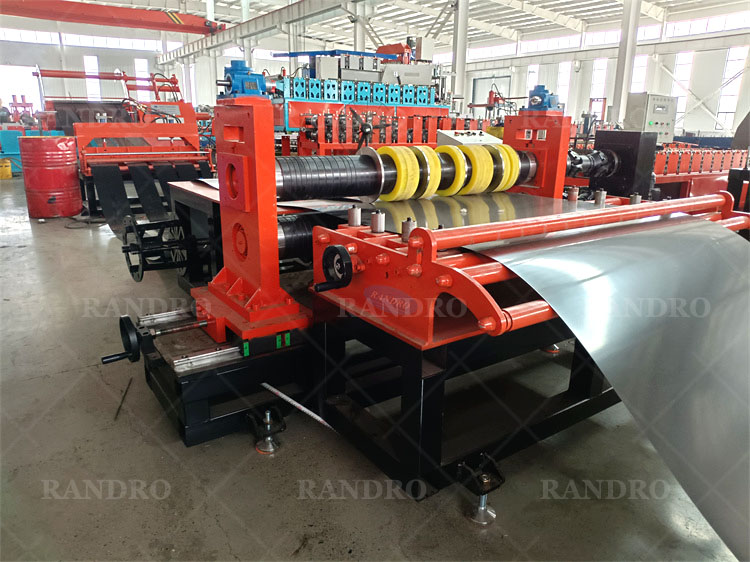

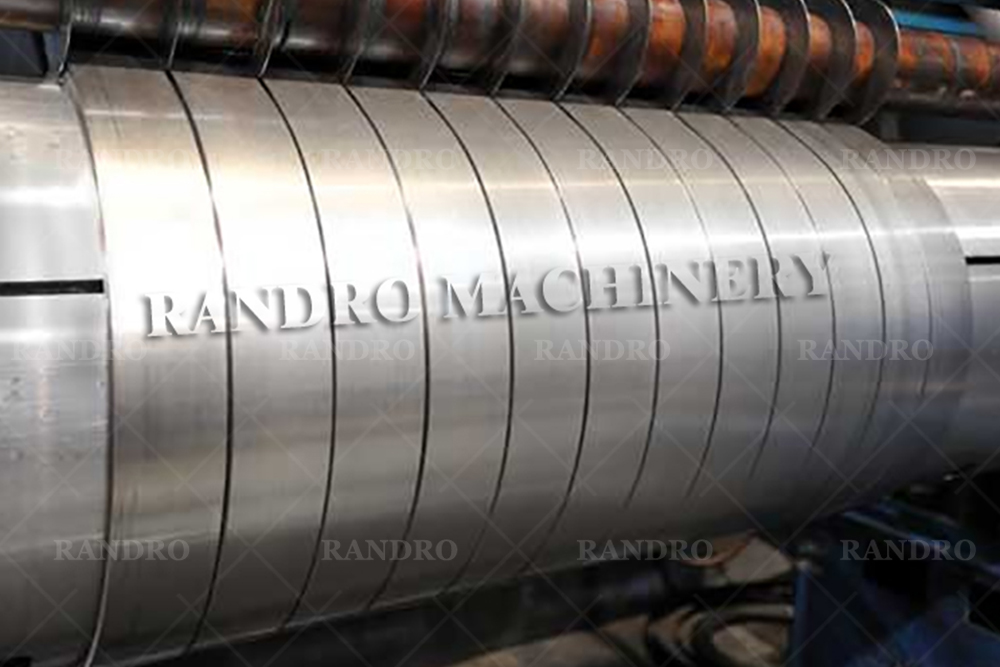

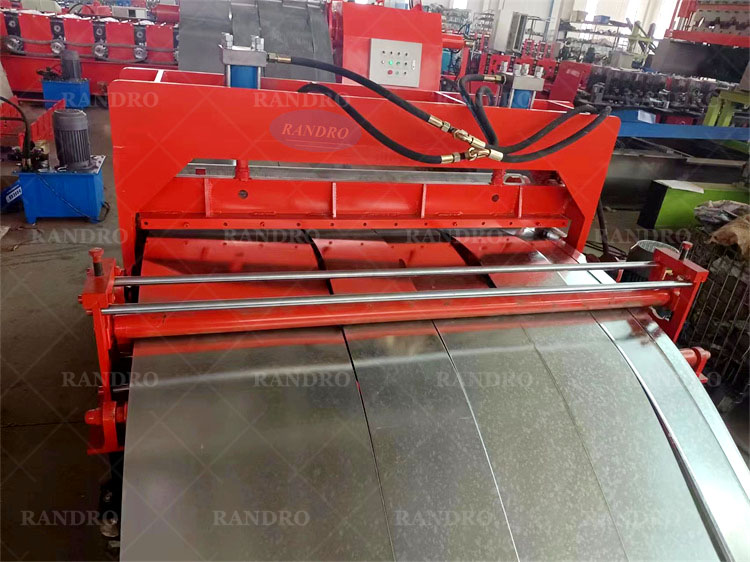

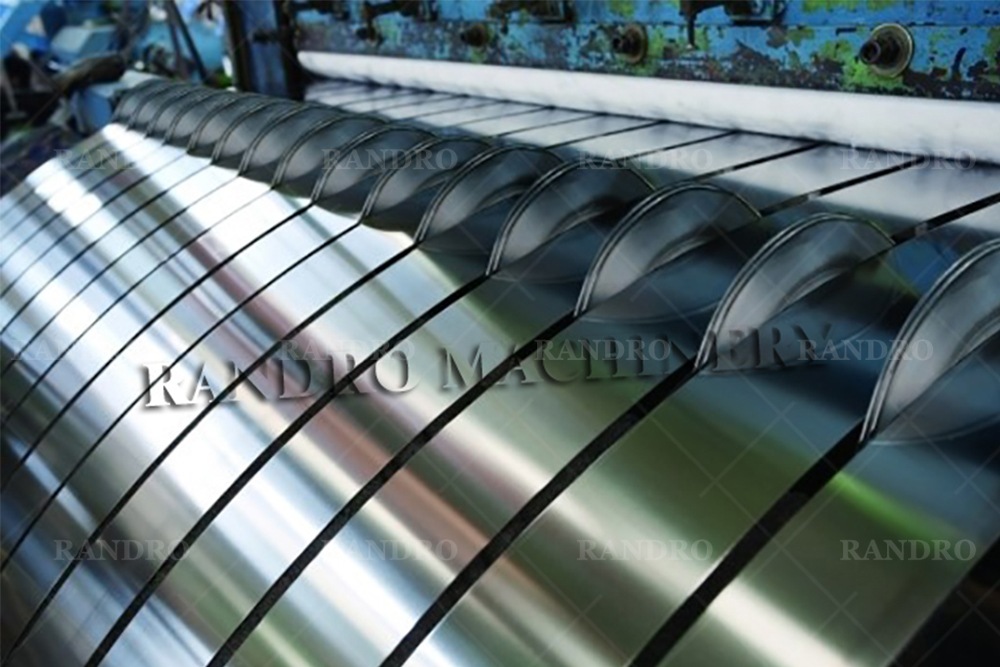

Slitting machine is also called slitting line, slitting machine, slitting machine, which is used to unwind, slitting and rewind metal coils into strips of required width. It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after surface coating.

Characters

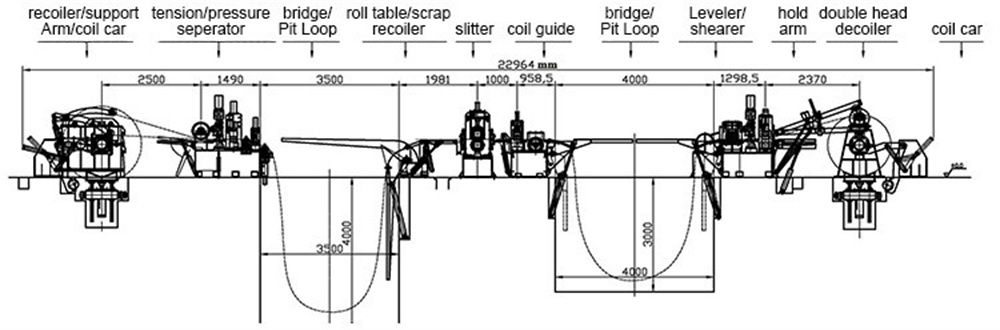

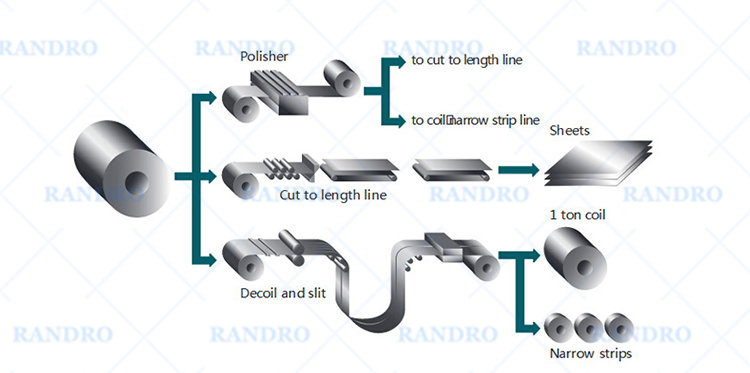

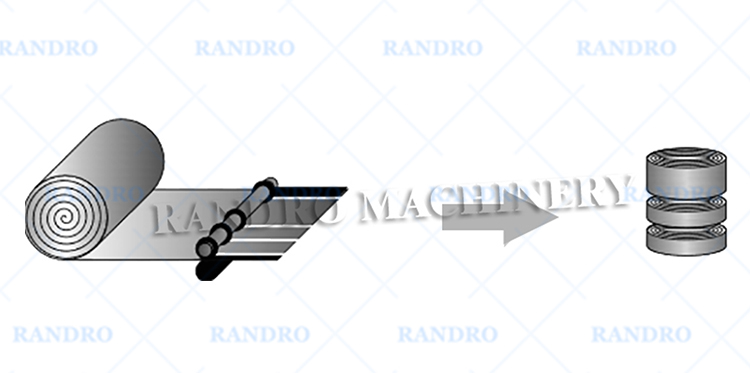

Working Principle

SPECIFICATION

ItemProjectParameter
1MaterialHR, CR, GI
2Thickness0.6mm--3.0 mm
3Width400-1600mm
6Weight25 T
9Width tolerance:0.10mm
12Way of cuttingFeed cutting
13Slitting strips0.6mm--1.5mm 25strips
141mm--2mm 20 strips
153.1mm--4mm 8 strips
16Strip widthMin 30mm
17Recoiler diameterΦ508mm/Φ610mm
18Line Speed80m/min
19Operation height1000mm
20Total line power consumption270kw
